MINI W11 R53/R52 Crate Engine Build - Config 2
Lohen has been repairing and upgrading the W11 engine found on MINI Cooper S, JCW and GP R53 and R52 models since the company started in 2004. Using this knowledge Lohen now offers crate engines that are built for various uses and tuning levels.
The Lohen W11 Config 2 Crate Engine Build is a package suitable for MINI owners looking for the very best from their R53 Cooper S, John Cooper Works or GP model. Also suitable for the R52 Cooper S and John Cooper Works models.

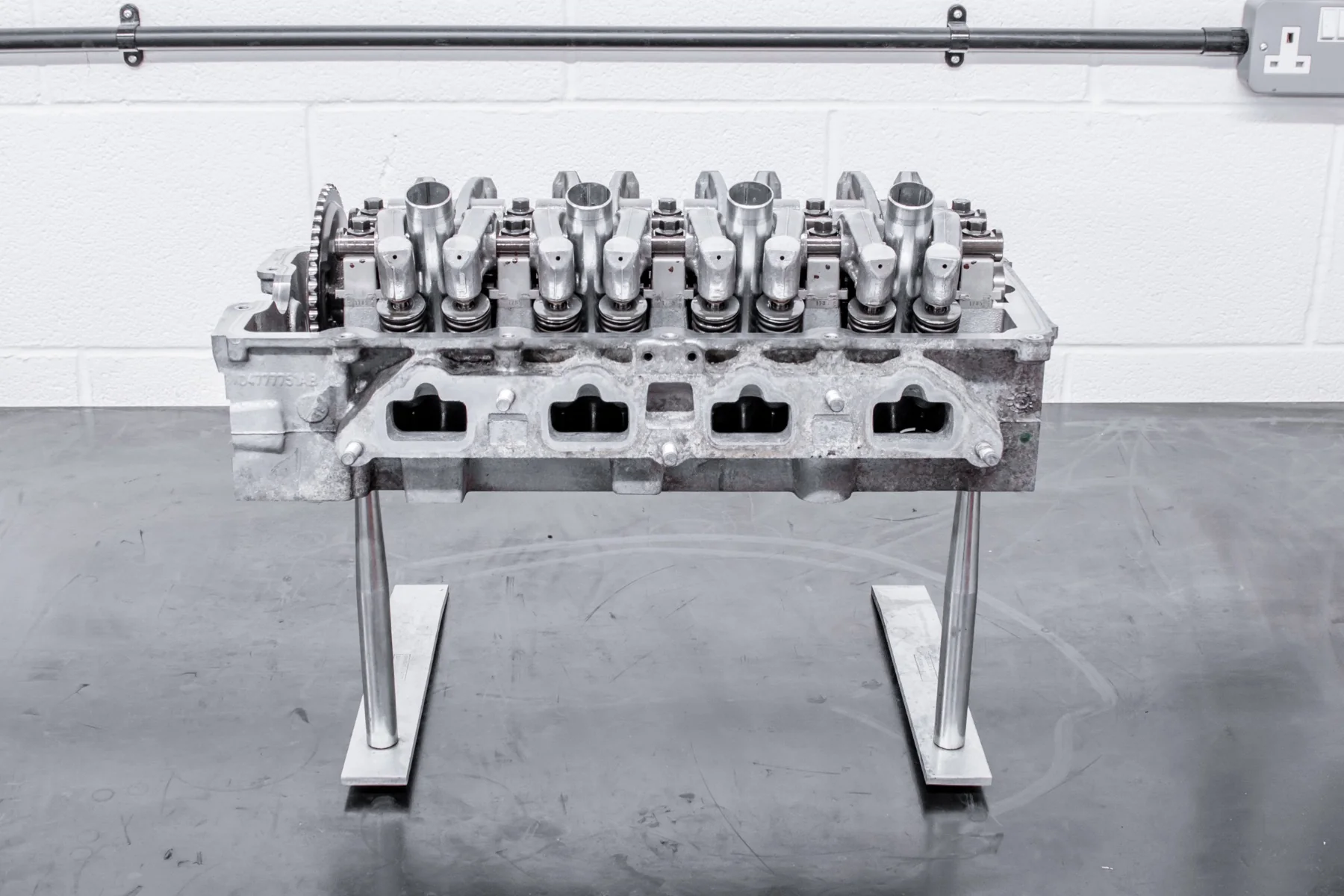

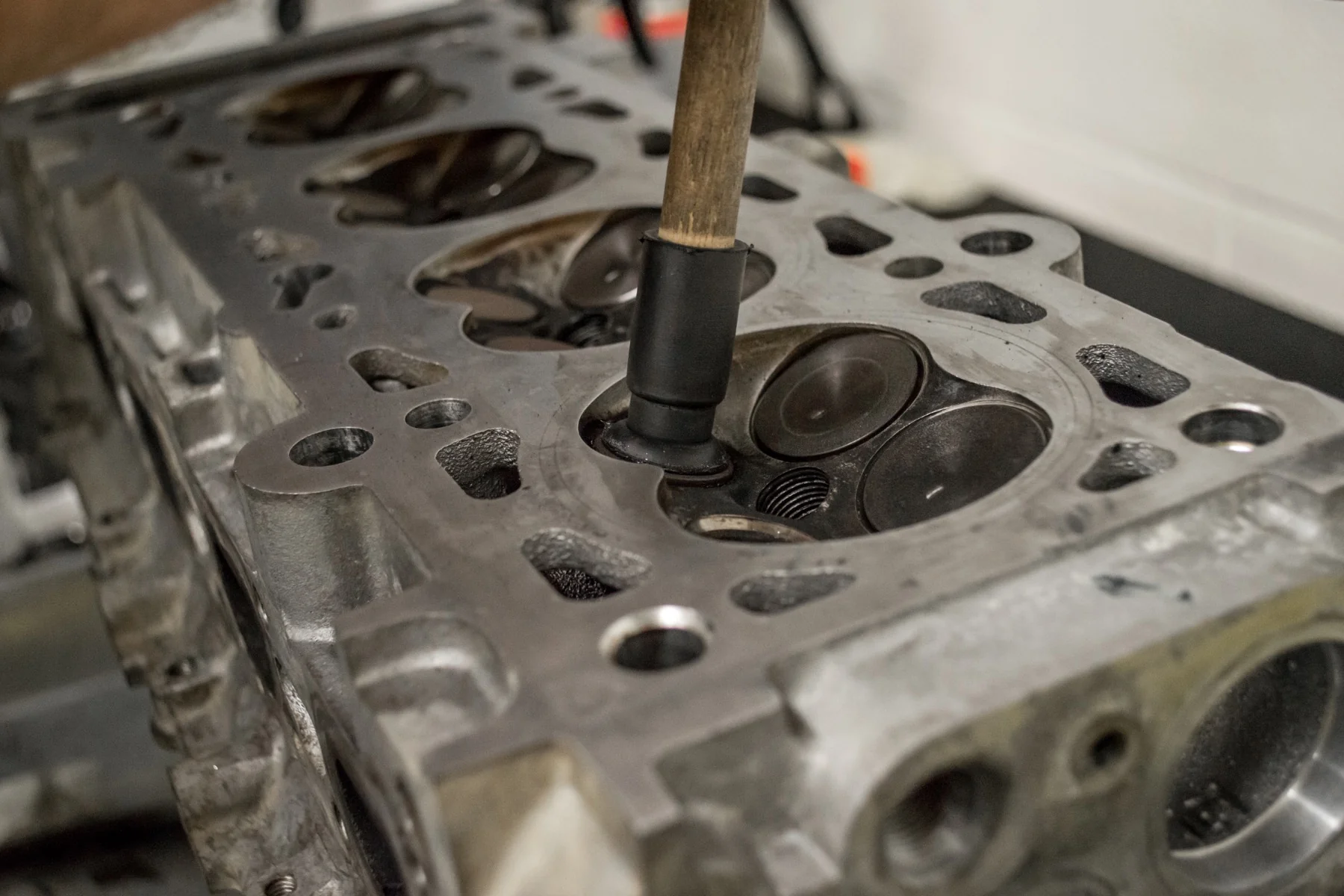

The Configuration 2 W11 crate engine features Lohen's big valve ported cylinder head that is built with Supertech forged valvetrain, performance valve spring, and titanium retainers.
As with the Configuration 1 build, the bottom end uses Supertech forged pistons and Bridgeway connecting rods.This is pulled together with ARP 2000 main bolts, cylinder head bolts and cam sprocket bolts with new OEM specification parts such as gaskets, lifters, etc. High quality King Racing engine bearings are used in the construction.
All engines are re-built in-house by Lohen to OEM or higher specification.
Cylinder bores are checked for ovality and are either honed or bored-and-honed for the right size piston to the correct tolerance. Cranks and camshafts are checked for size, wear and damage before they are re-used and, where appropriate, balanced to 0.1gram.
Please note - Lohen Crate Engines are supplied as timed-up bare units without bolt-on ancillaries. The engines are therefore shipped dry and require final assembly of ancillaries and fluids prior to installation and start.
If required, Lohen can supply a fully built engine for an additional charge. We also offer professional in-house installation and running-in-service at our workshop.
W11 Engine Installation kit is suggested when installing a Lohen Crate Engine. Click Here For full details about the Lohen W11 Crate Engine Installation Kit - in summary, this includes 1 x running oil, 2 x engine oil, oil filters, supercharger oil change, gearbox oil change, gaskets, coolant, and key service components for renewal such as a thermostat, spark plugs, injector servicing knock sensor, and water pump.
Exchange Donor Unit Surcharge
Lohen will apply a surcharge to every engine sold unless a donor unit is supplied and it is deemed to be in re-buildable condition.
Original: $10,974.76
-65%$10,974.76
$3,841.17Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Lohen has been repairing and upgrading the W11 engine found on MINI Cooper S, JCW and GP R53 and R52 models since the company started in 2004. Using this knowledge Lohen now offers crate engines that are built for various uses and tuning levels.
The Lohen W11 Config 2 Crate Engine Build is a package suitable for MINI owners looking for the very best from their R53 Cooper S, John Cooper Works or GP model. Also suitable for the R52 Cooper S and John Cooper Works models.
The Configuration 2 W11 crate engine features Lohen's big valve ported cylinder head that is built with Supertech forged valvetrain, performance valve spring, and titanium retainers.
As with the Configuration 1 build, the bottom end uses Supertech forged pistons and Bridgeway connecting rods.This is pulled together with ARP 2000 main bolts, cylinder head bolts and cam sprocket bolts with new OEM specification parts such as gaskets, lifters, etc. High quality King Racing engine bearings are used in the construction.
All engines are re-built in-house by Lohen to OEM or higher specification.
Cylinder bores are checked for ovality and are either honed or bored-and-honed for the right size piston to the correct tolerance. Cranks and camshafts are checked for size, wear and damage before they are re-used and, where appropriate, balanced to 0.1gram.
Please note - Lohen Crate Engines are supplied as timed-up bare units without bolt-on ancillaries. The engines are therefore shipped dry and require final assembly of ancillaries and fluids prior to installation and start.
If required, Lohen can supply a fully built engine for an additional charge. We also offer professional in-house installation and running-in-service at our workshop.
W11 Engine Installation kit is suggested when installing a Lohen Crate Engine. Click Here For full details about the Lohen W11 Crate Engine Installation Kit - in summary, this includes 1 x running oil, 2 x engine oil, oil filters, supercharger oil change, gearbox oil change, gaskets, coolant, and key service components for renewal such as a thermostat, spark plugs, injector servicing knock sensor, and water pump.
Exchange Donor Unit Surcharge
Lohen will apply a surcharge to every engine sold unless a donor unit is supplied and it is deemed to be in re-buildable condition.
